Description
metal gear motor Dual-Shaft Micro Metal GearmotorThis motor is a miniature brushed DC motor with a metal gearbox and dual shaft, available in a range of gear ratios depending on your speed or torque needs. The unique dual shaft design allows the creation of new and exciting robotics projects. Each motor has the same physical dimensions, allowing you to swap out motors where required. We also stock traditional straight shaft versions. Specifications 42: 1 118: 1 300: 1 Voltage 6V 6V 6V Reduction

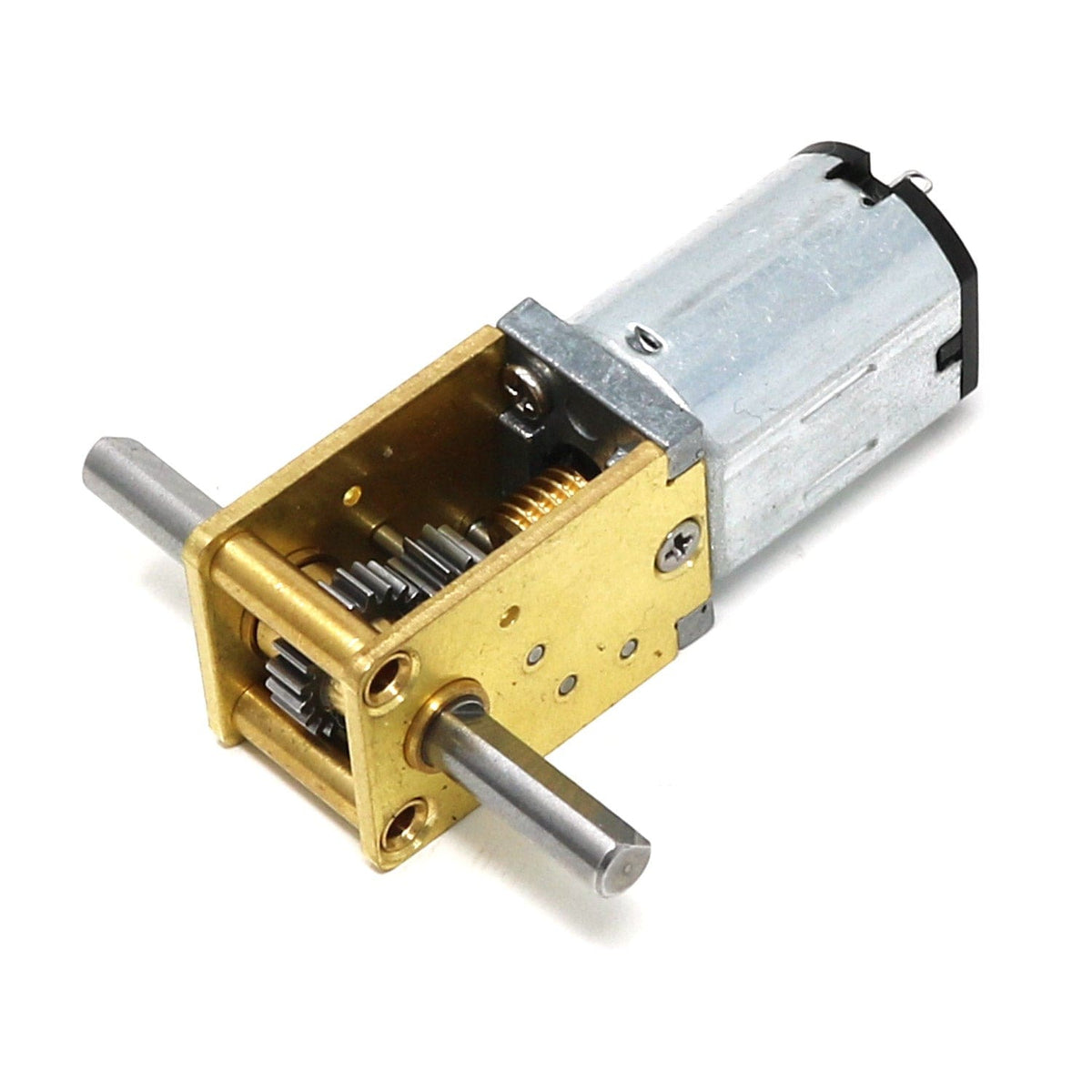

This motor is a miniature brushed DC motor with a metal gearbox and dual-shaft, available in a range of gear ratios depending on your speed or torque needs.
The unique dual-shaft design allows the creation of new and exciting robotics projects. Each motor has the same physical dimensions, allowing you to swap out motors where required.
We also stock traditional straight-shaft versions.
Specifications
| 42:1 | 118:1 | 300:1 | |
| Voltage | 6V | 6V | 6V |
| Reduction (Ratio) | 42:1 | 118:1 | 300:1 |
| Motor Speed (RPM) | 8000 | 8000 | 8000 |
| No-load Speed (RPM) | 190 | 68 | 26 |
| No-load Current (mA) | 20 | 20 | 20 |
| Load Speed (RPM) | 143 | 51 | 20 |
| Load Current (mA) | 60 | 60 | 60 |
| Starting Voltage (V) | 0.5 | 0.5 | 0.5 |
| Stall Current (mA) | 350 | 350 | 350 |
| Stall Torwue (gf.cm) | 73.5 | 206.5 | 528.5 |
| Rated Torque (gf.cm) | 22 | 62 | 159 |
| Power (W) | 0.36 | 0.36 | 0.36 |
Dimensions
